OPTICAL COATING



Our optical coating department offer a range of standard and customize coatings to support our optics fabrication from Ultraviolet to Infrared.






ANTI-REFLECTION COATING
  • Single Layer
    • Reduces Fresnel reflection of substrate such as fused silica from approximately 4% to 1.5% per surface.
    • Used in commercial optical products and less demanding applications.
  • Broadband
    • This multi-layer coating usually consists layers of different refractive indices, providing reflectivity of less than 0.3% per surface, over a wide wavelength range as compare to single layer AR coating.
    • Used in multi-wavelength laser, optical lenses and display windows.
  • V-Coating
    • Optimized for low reflection - with surface reflectance of less than 0.25% at one specific wavelength.
    • Provide efficient transmittance for complex optical systems.
  • Near-UV
    • High reflectivity of less than 0.5% from 360 – 620nm.
    • For undemanding focussing of UV light sources.



DIELECTRIC HIGH REFLECTIVE COATING
  • Using optical interference coatings to change the reflectivity of the optical surfaces.
  • It can achieved from nearly zero (anti reflection coatings) to nearly 100% (R > 99.9%), usually at specific wavelength or wavelength range.
  • Use in many scientific optical instruments, as well as consumer devices and photographic lenses.




METALLIC MIRROR COATING

The advantages of metallic coating are low cost over a wide broadband range, while having lower reflectance, mechanical and damage durability than dielectric coatings.

  • Protected Aluminum
    • Provide over 88% average surface reflection in the visible spectrum (400nm - 700nm).
    • Overcoat with a layer dielectric to provide better resistance to abrasion and oxidation.
  • Enhanced Aluminum
    • Provide about 93% average surface reflection in the visible spectrum (400nm - 700nm).
    • Higher Reflectivity and better resistance to abrasion with overcoat of multilayers dielectric.

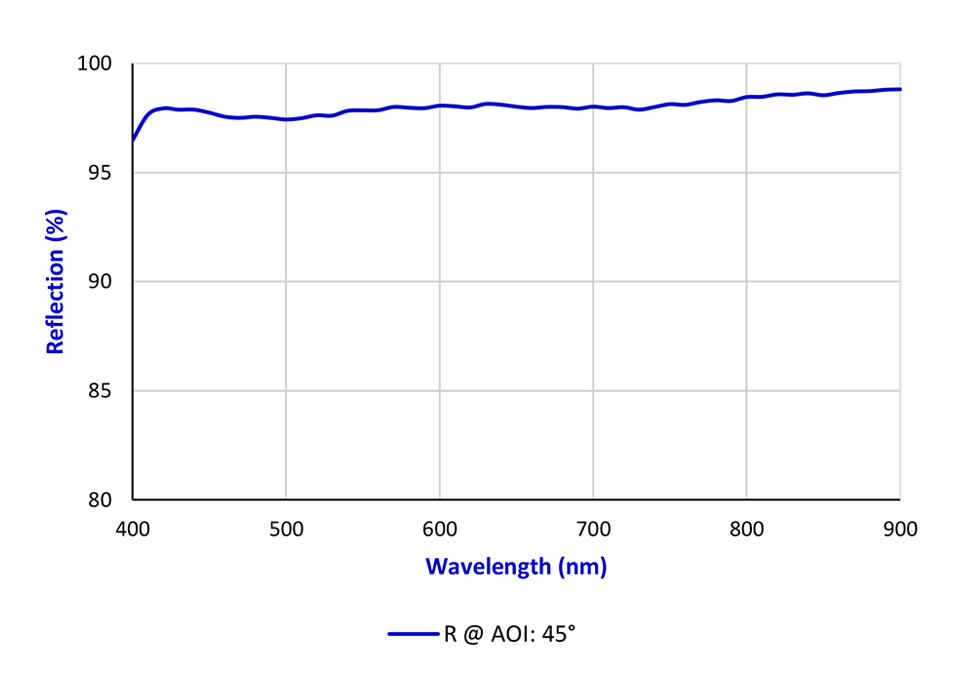

  • Protected Silver
    • Provide about 97% average surface reflection in the visible spectrum (400nm - 700nm), offer high reflection of about 96% in the IR range (2 - 20 µm).
    • With a layer of dielectric overcoat to prevent from tarnishing.
  • Protected Gold
    • Provide over 98% average surface reflection from 20nm - 800nm.
    • Protect with a layered of dielectric overcoat.

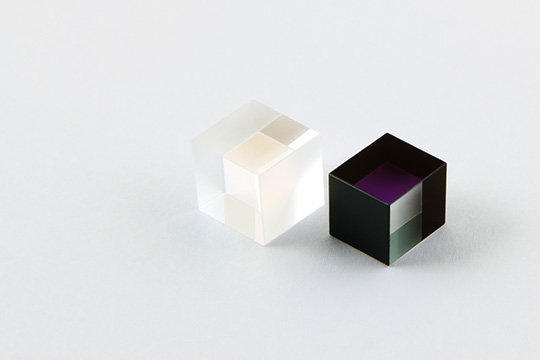

BEAM SPLITTER COATING

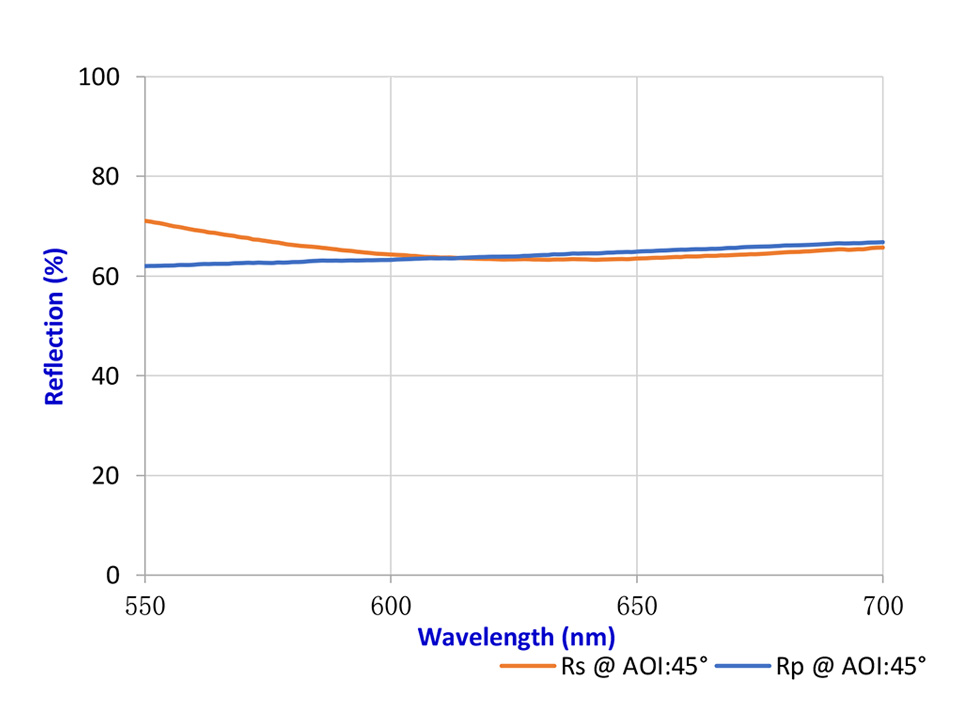

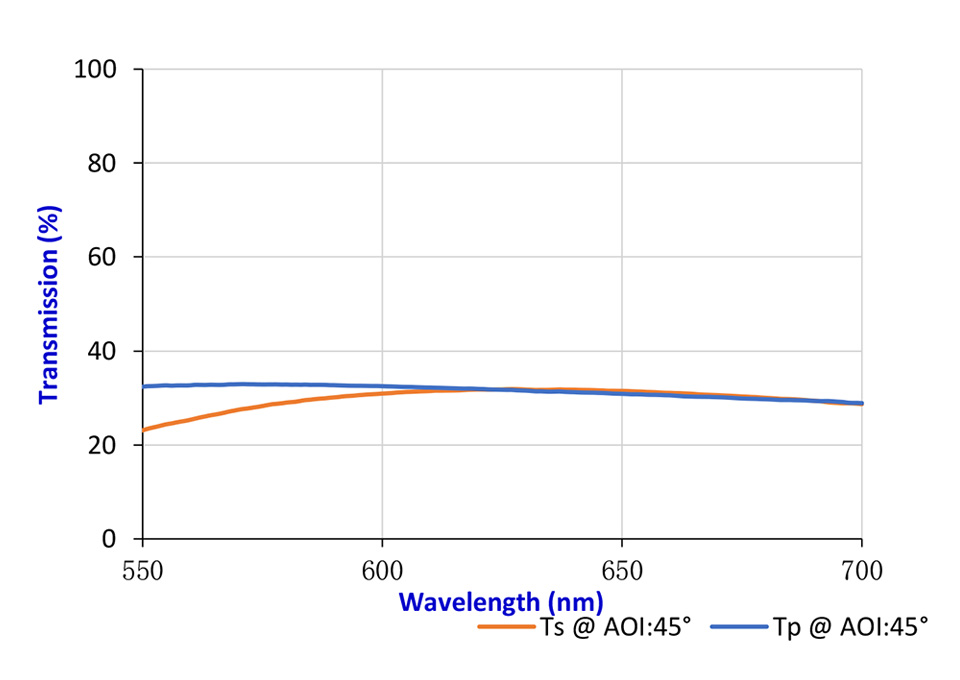

  • Broadband Dielectric
    • Uses multilayer dielectric broadband coatings to produce the specified transmission / reflectance ratio over a wide range of wavelength.

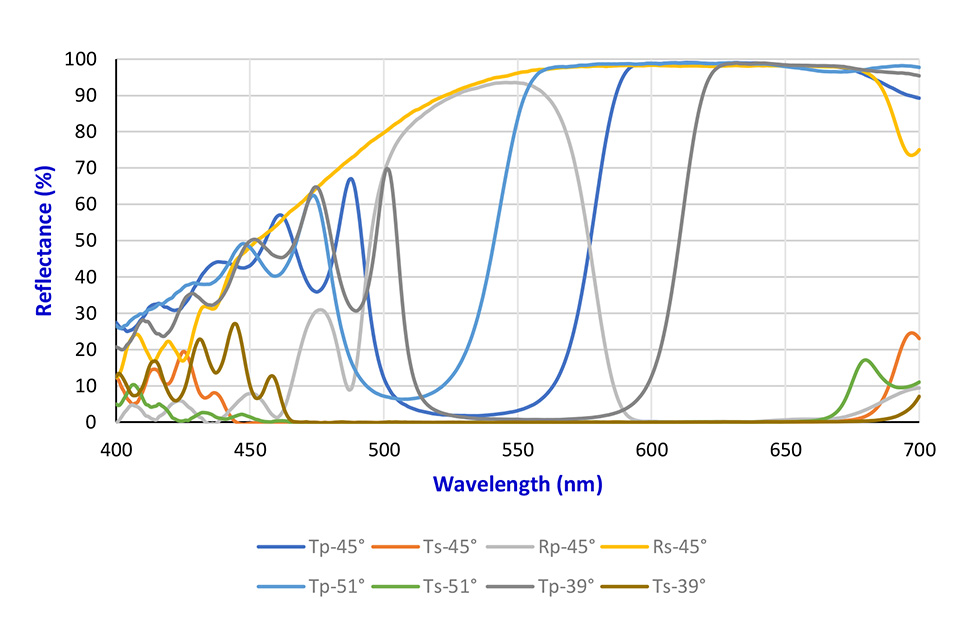

  • Broadband Polarizing
    • High reflection for S-Polarization and transmission for P-polarization over a wide range of wavelength

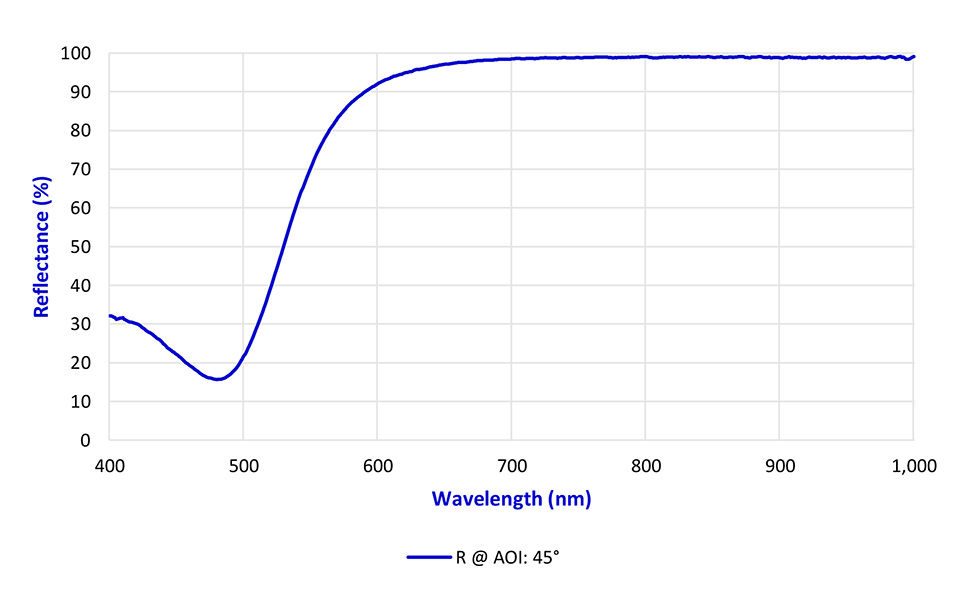

  • Dichroic Mirror
    • Wide range of transmission / reflectance ratio at specified wavebands.
    • High transmission for short wavelength, while a long wavelength is highly reflective.




br>
EDGE PASS COATING

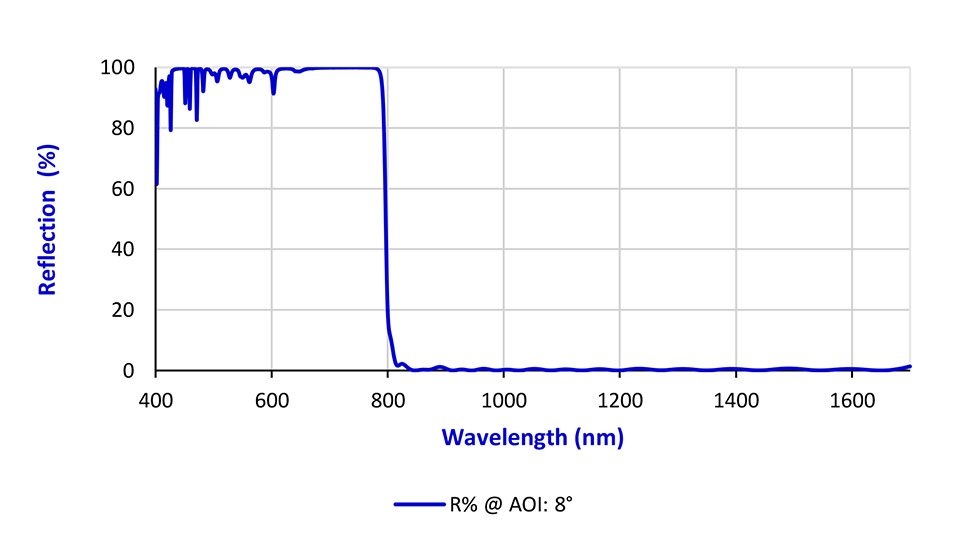

  • Long Wave Pass
    • Reflects more than 99% of the shorter wavelengths (from 400-700nm) and transmit 95% longer wavelengths (from 780-1200nm) with 50% cut-off wavelength around 750nm.
  • Short Wave Pass
    • Reflects longer wavelengths (from 500-700nm) and transmit shorter wavelengths (from 325-450nm) with 50% cut-off wavelength around 470nm.
  • Narrow Band Minus
    • Having a nominal bandwidth of 110nm with an average reflection of more than 99% over a nominal bandwidth of 30-40 nm. Average transmission 90%.
